Mangawhai Domain

Project Type: 2D Orthomosaic Aerial Mapping & Terrain Modelling
Location: Mangawhai, Northland
Application: Recreational field planning, asset measurement, and operational management

Overview
MappLab was engaged to deliver a high-accuracy spatial mapping of Mangawhai Domain to support planning, sector measurement, and field management calculations across a multi-use recreational landscape.

Using RTK-enabled aerial data capture, the site was surveyed to produce a georeferenced orthomosaic and terrain model. Photogrammetric processing generated a dense point cloud and elevation dataset, enabling precise area calculations, dimensional analysis, and surface profiling across fields, infrastructure zones, and circulation areas.


Mangawhai 03.webp

Scope

  • Sports fields

  • Carpark

  • Playground areas

  • Driveway corridors

  • Tennis court






​

Method

  • RTK aerial data capture

  • High-resolution photogrammetric processing

  • Dense point cloud generation

  • Orthomosaic creation

  • Digital surface and terrain modelling

  • Elevation profiling and sector-based measurement analysis


​

Key Outputs

  • Georeferenced 2D orthomosaic

  • Area calculations for defined sectors

  • Object measurements and dimensional analysis

  • Elevation profiles identifying high and low points

  • Terrain interpretation for drainage and surface assessment

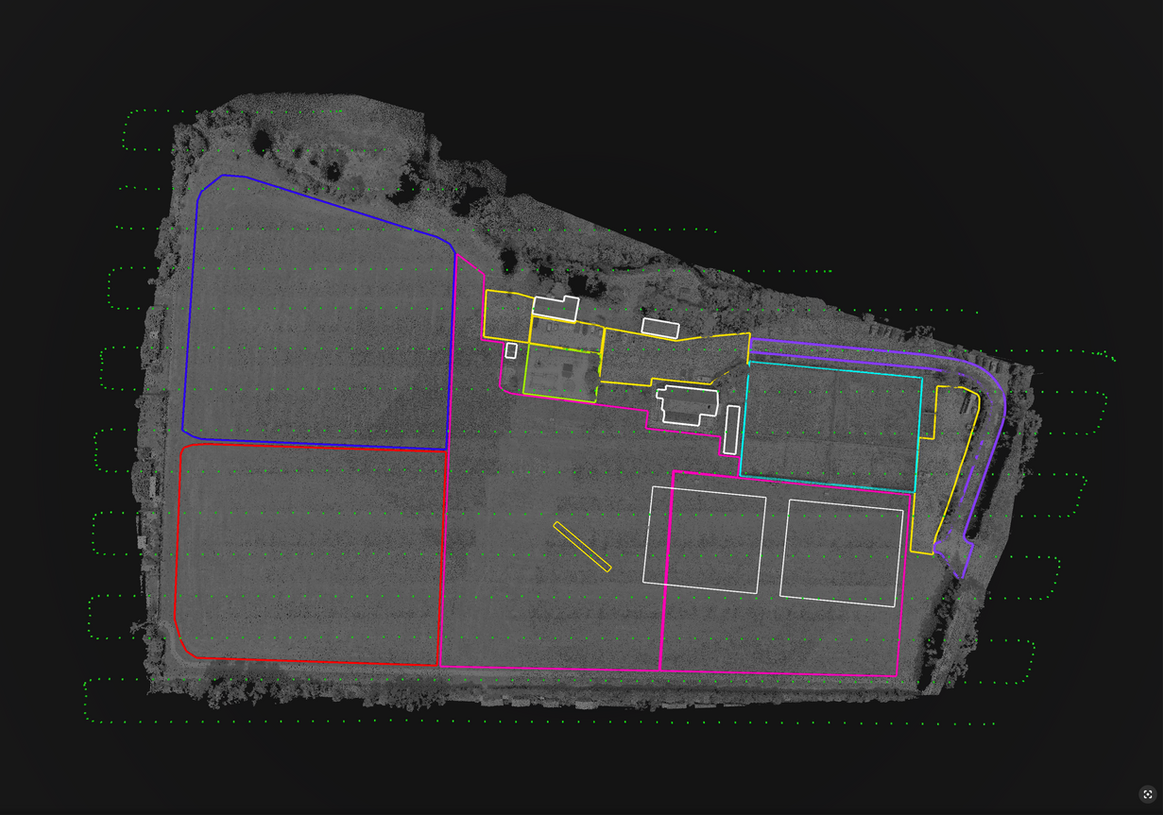

  • Annotated spatial overlays for planning

  • Aerial fly-over video

  • 360° panoramic site views

​

Mangawhai Domain ElevProf.webp
Mangawhai Domain 04.webp

Project Impact

Delivered a structured spatial dataset that transformed a complex recreational environment into measurable, decision-ready information — supporting improved planning accuracy, field management, and stakeholder communication.
